Jinan Makerl Machinery Co., Ltd. is one of the leading manufacturers and suppliers of intelligent production line for aluminum door and window in China. With abundant experience, we warmly welcome you to buy premium intelligent production line for aluminum door and window from our factory. Quality products and reasonable price are available.

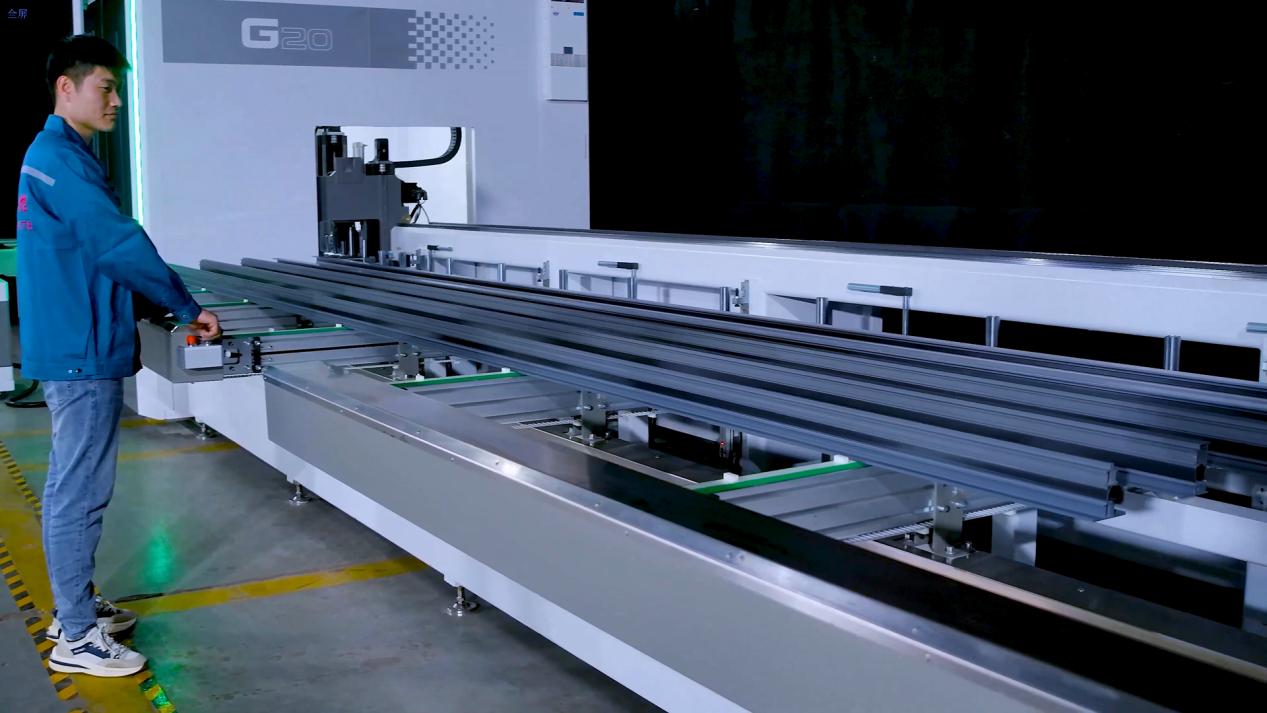

Simple to operate with just one general worker. Load up to 7 profiles at a time, and the system automatically handles feeding, milling, cutting and unloading - fully automatic, stable and efficient.
Cutting · Drilling & Milling · Laser · Intelligent Connectivity
The System Advantages of the G20 Intelligent Production Line
Space Saving
Compact footprint of just 100 ㎡ per unit.One operator per shift produces approximately 200 ㎡.
Superior Flexibility & Easy Maintenance
Intelligent profile positioning, smart programming and non-contact laser processing free you from tool and mold constraints.Parts and consumable costs are far lower than conventional machining.
Higher Precision
Multi-process integration with single clamping minimizes cumulative tolerances.Equipped with premium Japanese Shimpo planetary reducers, angular accuracy is within 1 arc minute for stable, reliable performance.
Higher Efficiency
20-axis servo drive with multi-channel parallel operation.Cycle time: 12–40 seconds per profile.Output: ~200 ㎡ in 9 hours for mixed cutting & milling; over 500 ㎡ for pure cutting.
ERP & Data Connectivity
Real-time data transmission and equipment networking for instant production feedback - an ideal MES-compatible unit.
Labor Efficient
Per capita output reaches 9–15 ㎡, boosting labor efficiency by over 60%.Saves 3–6 workers compared with traditional processing.

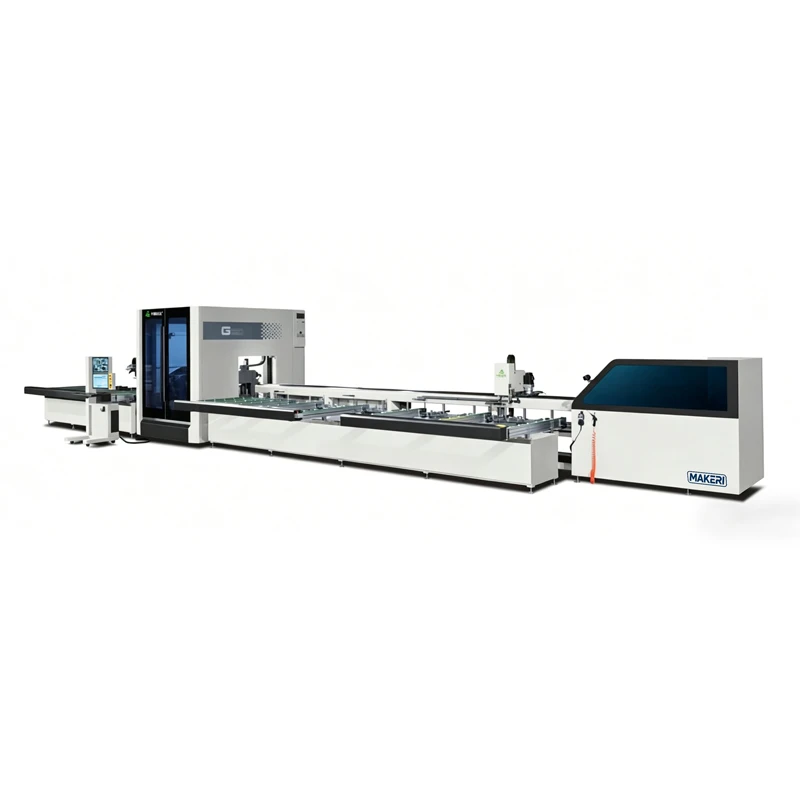

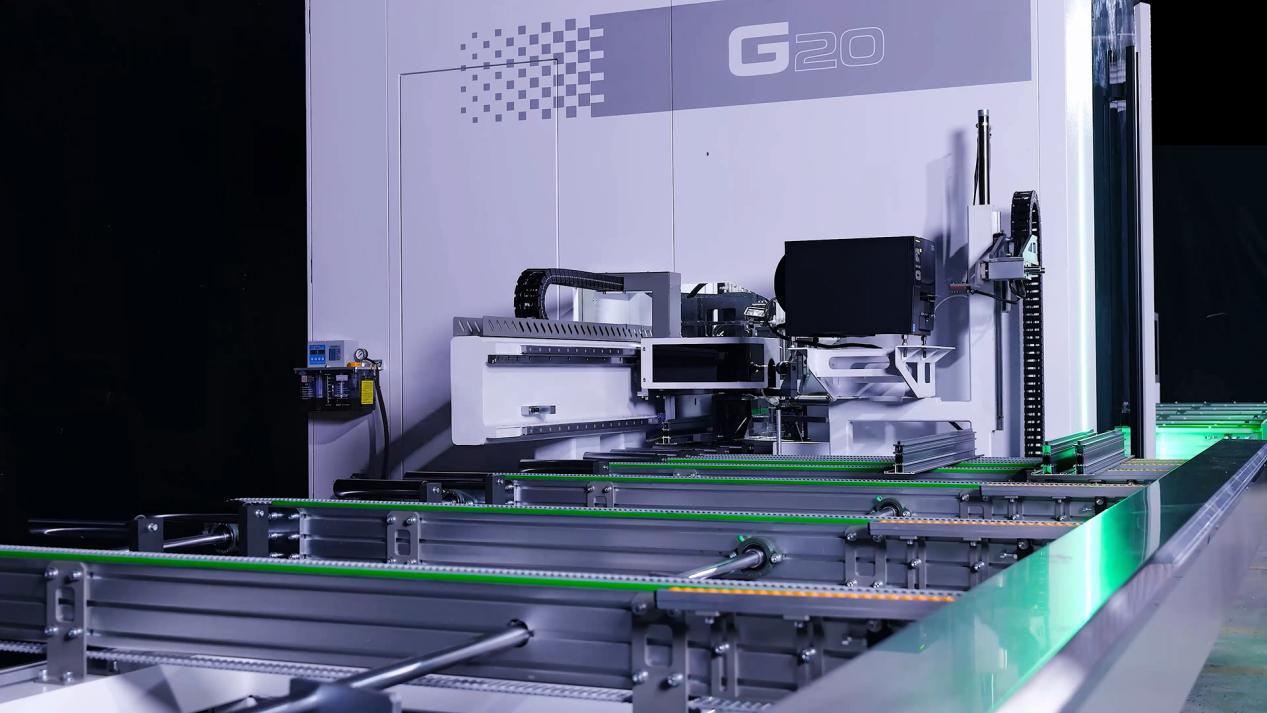

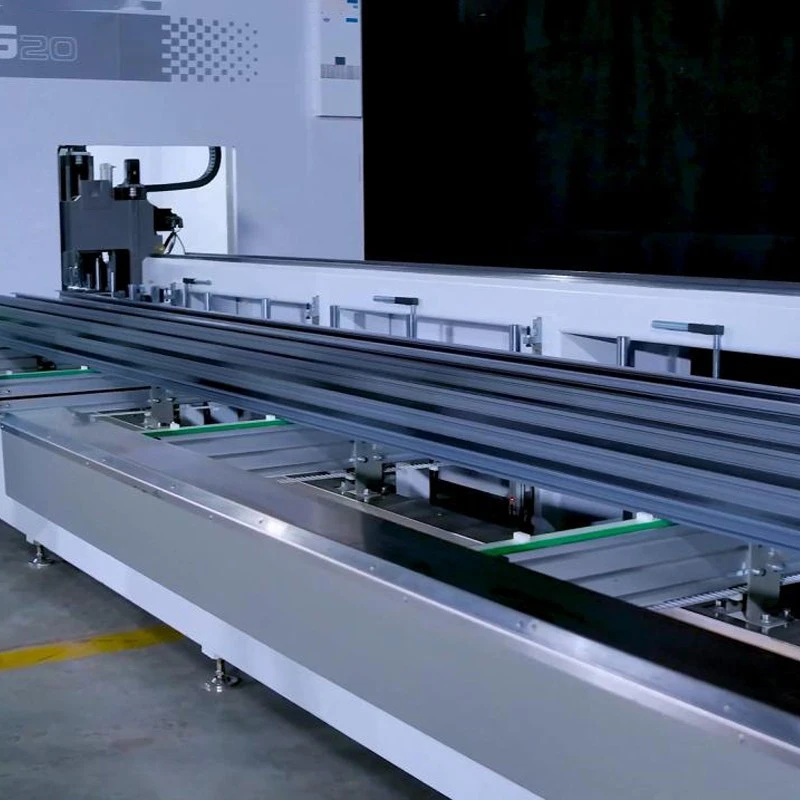

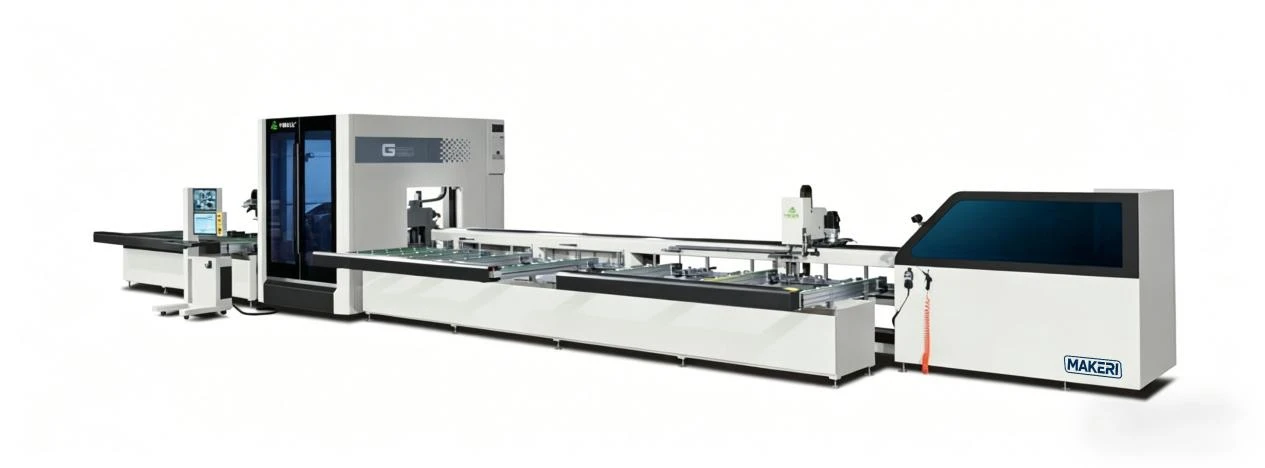

G20 Intelligent Production Line Equipment Features
- Designed for small-batch, high-variety door & window production

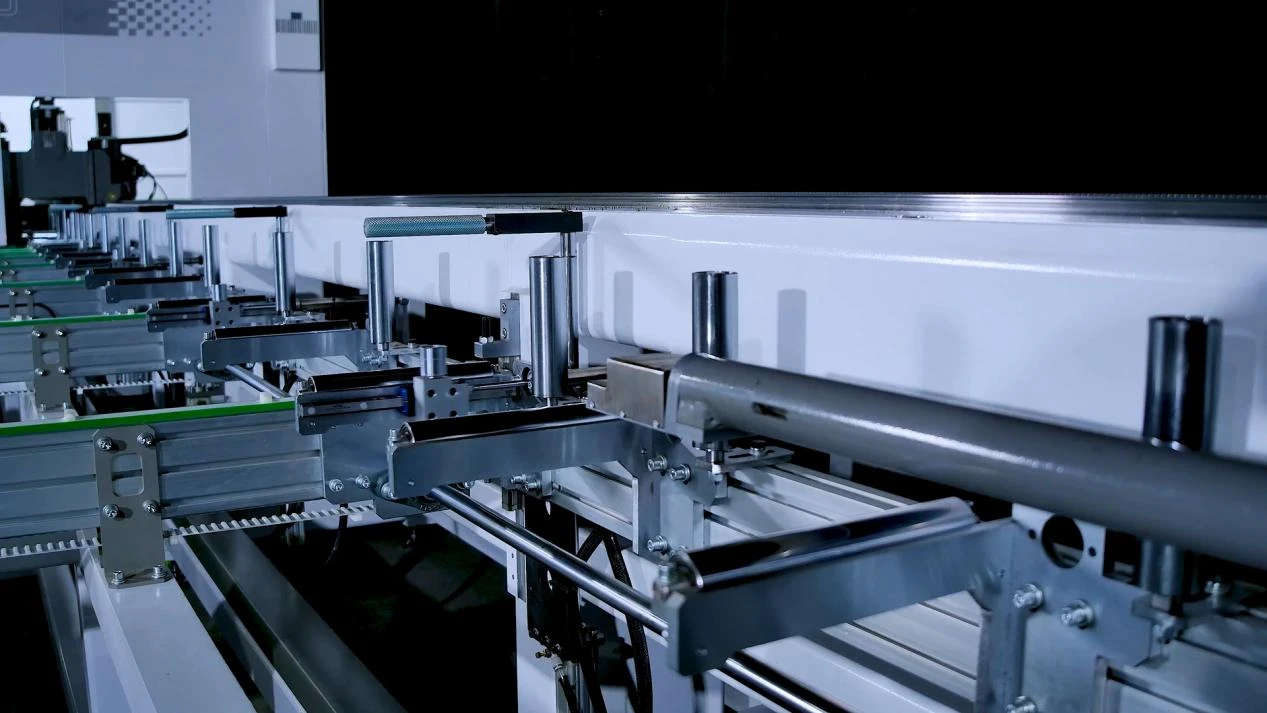

- Intelligent robotic handling; one clamping, full-process machining
- 45°/90°/45° fixed-head cutting with servo feed
- 4KW direct-drive motor; 30% higher cutting efficiency
- Cast frame structure for high precision & stability
- Simple operation; single operator, fully automatic
- ERP connectivity: network, QR code, USB
- Remote service for minimized downtime
G20 Intelligent Production Line Technical Specifications
|
Power Supply：380V/50HZ |
Power : 55KW |
Air Pressure: 0.6--0.8MPa |
Gas consumption： 180L/min |
|
Temperature:(-5℃)--(60℃) |
Saw Blade Motor Power：4KW*3 |
Milling Cutter Spindle Power: 6KW*6 |
Saw Blade: 550*4.4*30*120T |
|
Saw Blade Angle: 45° 45° 90° |
Absolute Bus Servo Power： 0.4KW*3, 0.75KW*15, 1.3KW*1, 1.8KW*1 |
||
|
Profile Sec. Size：150mm*150mm |
Saw Cutting Mode: 90° horizontal cutting 45° upward cutting |
Angle Accuracy： ±0.1mm |
|
|
Cutting Flatness： ≤0.10mm |
Angle Acc： 4″≈5″ |
Material Length： 650mm--6800mm |
Cut Length： 180mm--6800mm |
|
Load Qty： 7 |
U Axis Clamp Range： 180-6800mm |
Robot Speed： 0-120m/min |
Blade Cutting Speed： 0-50m/min |
|
U Axis Speed 0-54m/min |
Weight: Approx. 11 t |
Overall Dimensions (LWH): 15800 × 3500 × 2680 mm |
|
We adhere to precise manufacturing and rigorous quality control, integrate software and hardware seamlessly with systematic manufacturing technology.
With world-renowned components and strict quality assurance, we are dedicated to high-end intelligent equipment manufacturing to meet premium customer demands.
Our services
☆ Engineers offer tailored equipment configuration per your workshop size and production needs.
☆ Professional team boosts productivity; free customized industry consultation.
☆ Consistent product consultation & technical training for your success.
☆ Free training, installation & commissioning; 1-year warranty + lifelong maintenance.
☆ Intelligent spare parts center; regular follow-ups to address your needs.
☆ 24-hour online service to solve your problems anytime.
