Jinan Makerl Machinery Co., Ltd. is one of the leading manufacturers and suppliers of cnc intelligent double head cutting saw in China. With abundant experience, we warmly welcome you to buy premium cnc intelligent double head cutting saw from our factory. Quality products and reasonable price are available.

We are a professional manufacturer specializing in profile processing equipment.

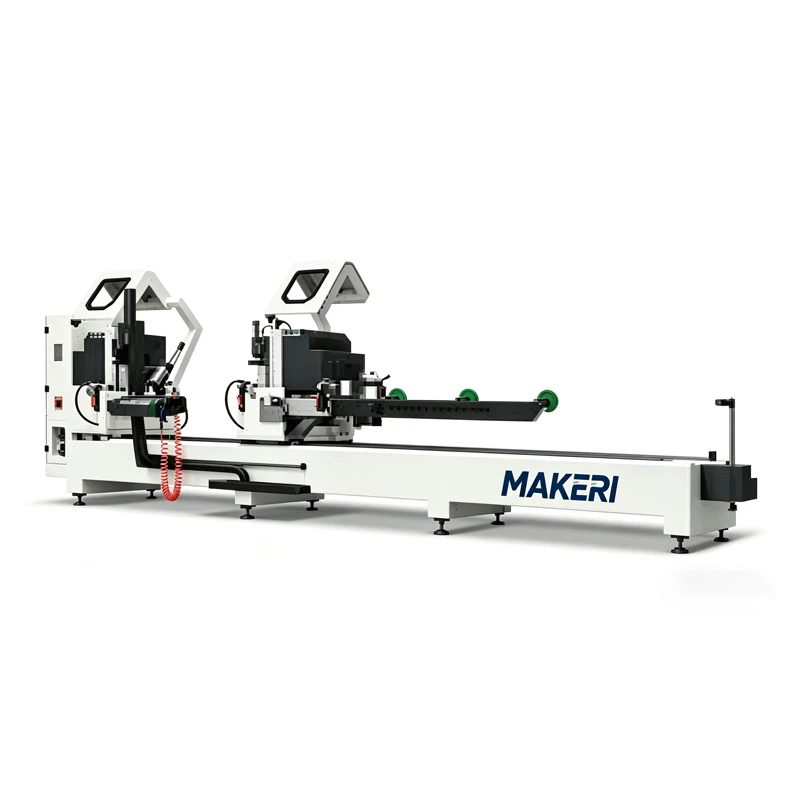

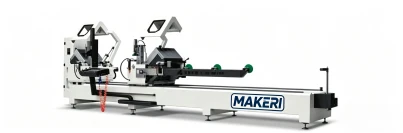

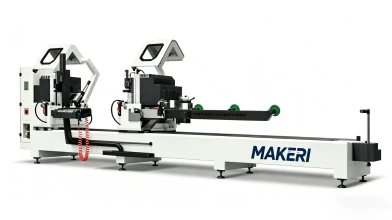

Our double-head cutting saw is a precision cutting machine designed for aluminum and plastic profile processing. It is widely used for 45° and 90° cutting of aluminum profiles in door, window, curtain wall, and PV frame production.


CNC-500*140	CNC-550*175	CNC-550*195

Product features of CNC Intelligent Double Head Cutting Saw

1)CNC-controlled cutting system ensures high-precision machining
2)Absolute servo system eliminates the need for homing operations
3)Built-in over-length cutting protection improves operational safety
4)Compatible with optimization software and USB data import
5)Precision rack and pinion drive delivers positioning accuracy of ±0.02 mm
6)High-precision linear guides ensure smooth and stable movement

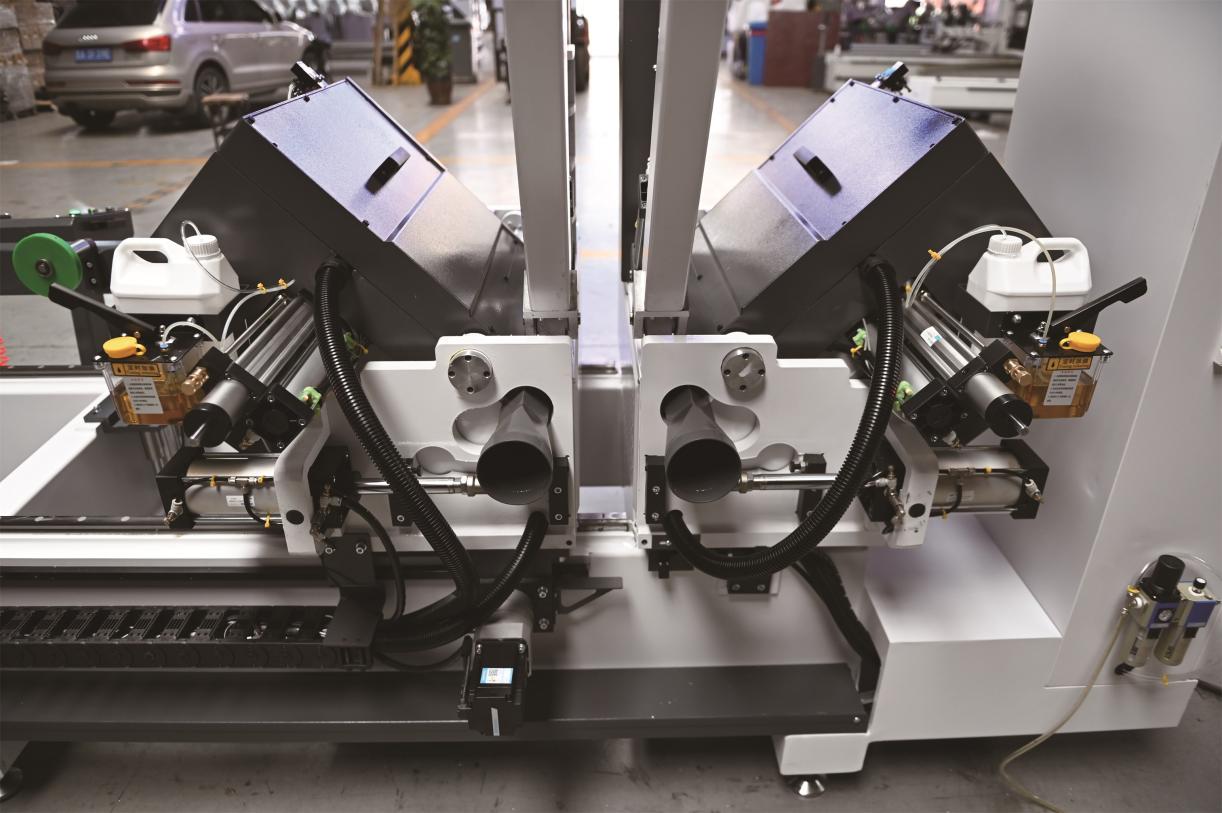

7)Diamond saw blade with hydraulic feed system provides accurate cutting performance
8)Automatic material height measurement and lifting adjustment improve efficiency

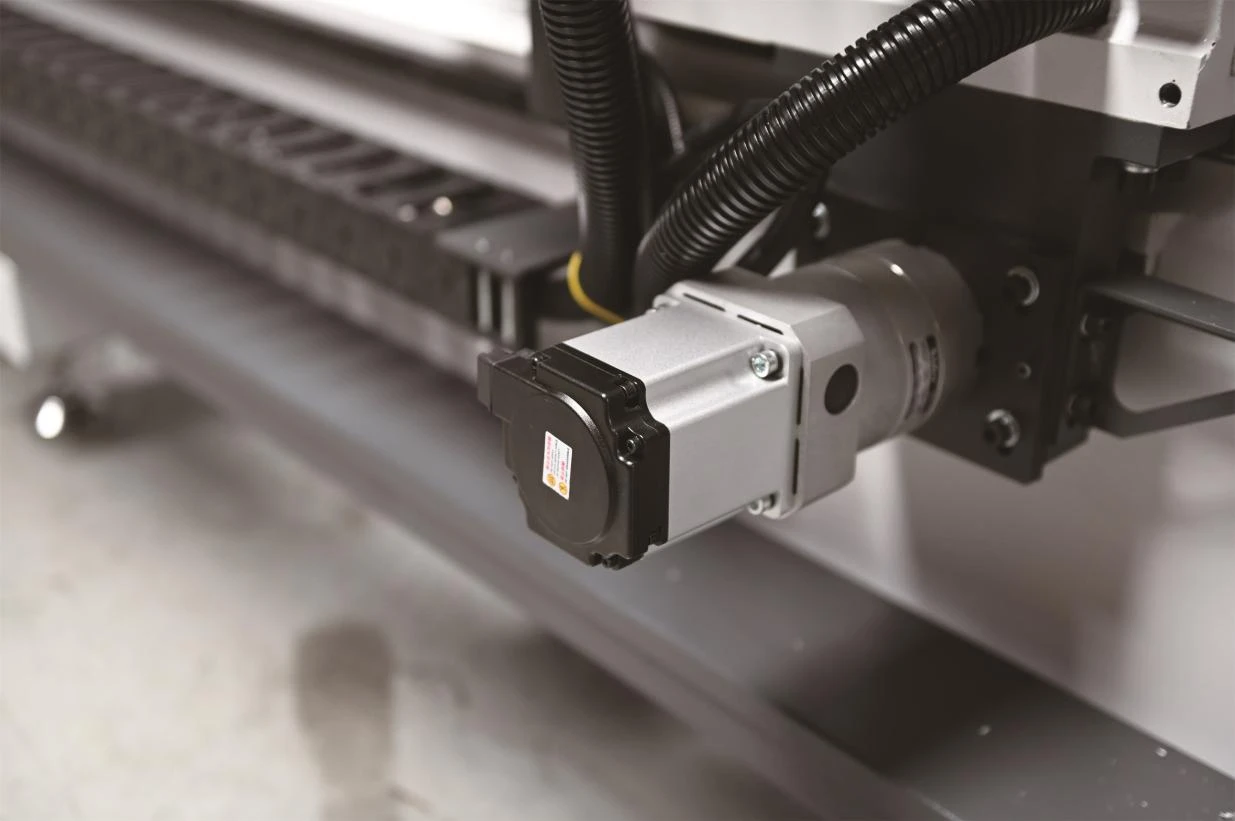

9)Equipped with Delta industrial PC, Inovance servo motors, and Kunlun Tongtai HMI

Double Head Cutting Saw Technical Specifications

Model	*CNC-500140**	*CNC-550175**	*CNC-550195**
Power	380V/50Hz	380V/50Hz	380V/50Hz
Motor power	10kW	10kW	10kW
Sawing motor	4.0kW×2	4.0kW×2	4.0kW×2
Motor speed	3000r/min	3000r/min	3000r/min
Air pressure	0.5~0.8MPa	0.5~0.8MPa	0.5~0.8MPa
Saw blade	Ф500×4.0×3.4×Ф30mm 120T	Ф550×4.0×3.4×Ф30mm 120T	Ф550×4.0×3.4×Ф30mm 120T
Cutting width	140mm	175mm	195mm
Cutting length	320~4200mm	350~4200mm	320~4200mm
Sawing angle	45° 90°	45° 90°	45° 90°
Repeatability	±0.02mm	±0.02mm	±0.02mm
Size	5800×1800×1900mm	5800×1800×1900mm	6000×1800×1900mm
Weight	1588kg	1650kg	1800kg

Double-head cutting saws are widely used for high-precision production of aluminum-plastic profiles, photovoltaic frames, door and window profiles, and other related components. Common issues include pneumatic system failures, saw blade wear, cutting angle deviations, positioning errors, abnormal sounds, and unexpected machine stops.

Double-head cutting saws Common Problems & Troubleshooting

Inaccurate Cutting Angles (45°/90°)

Causes: Loose limit stops, insufficient cylinder pressure, magnetic scale/encoder drift.Fix:
Power off, check limit stop screws.
Adjust stops if error exceeds ±15′.
Tighten and test cut.

Saw Blade Wear or Chipped Teeth

Causes: Excessive feed rate, improper cutting fluid, material hardness, mismatched blade.Fix:

Ensure proper cutting fluid atomization.

Use dedicated carbide blade (D=500mm).

Keep spindle speed at 3200 r/min.

Abnormal Noise & Vibration

Causes: Poor lubrication, worn guides/ball screws, damaged bearings, unbalanced blade.Fix:

Lubricate guides with lithium grease per shift.

Check clamping stability.

Set band saw tension to 15–25 MPa.

Inaccurate Feeding & Positioning

Causes: Encoder fault, dirty magnetic scale, uncalibrated cylinder.Fix:
Clean magnetic scale and check wiring.
Calibrate cylinder stroke on HMI.
Restart CNC system if needed.

No Start or Frequent Shutdowns

Causes: Jammed e-stop, low air pressure, overload, poor grounding.Fix:
Maintain air pressure 0.5–0.8 MPa.
Check 380V power and grounding (≤4Ω).
Reset PLC alarms per manual.
