12-Axis CNC Knurling And Strip Insertion Machine

12-Axis CNC Knurling And Strip Insertion Machine

Prepare Thermal Break Profiles Faster with Less Manual Work
Combine aluminum profile knurling and PA66 thermal barrier strip insertion in one CNC-controlled process, reducing manual handling and setup work while improving production consistency.
One integrated process. Less manual work. More consistent results.
Send Your Profile Drawing → Get a Machine Recommendation
Send Inquiry
Description

Jinan Makerl Machinery Co., Ltd. is one of the leading manufacturers and suppliers of 12-axis cnc knurling and strip insertion machine in China. With abundant experience, we warmly welcome you to buy premium 12-axis cnc knurling and strip insertion machine from our factory. Quality products and reasonable price are available.



Why This Matters in Production

When knurling and strip insertion are handled as separate operations, the aluminum profile needs to be transferred and repositioned between processes. This adds manual handling and makes profile changeover more time-consuming.

The MAKERL 12-axis CNC machine combines the two operations in one process, reducing profile transfer and manual positioning work before rolling crimping.

For manufacturers processing different thermal break profile designs, the main benefit is simpler handling and less manual adjustment between knurling and strip insertion.

New 12-Axis CNC Knurling and Strip Insertion Machine
New 12-Axis CNC Knurling and Strip Insertion Machine



Why Use a Combined Knurling and Strip Insertion Machine?

When knurling and strip insertion are performed separately, the profile has to be transferred and positioned again before the next operation. For production involving different profile designs, this can add unnecessary handling and adjustment work.

The 12-axis CNC machine keeps the two operations together. It first forms mechanical teeth in the aluminum profile groove and then inserts the PA66 polyamide thermal barrier strip.

For manufacturers running multiple profile designs, the main advantage is not simply automation. It is reducing the amount of manual adjustment required between knurling and strip insertion.



What Does the 12-Axis CNC System Control?

The 12-axis configuration allows the working positions for knurling and strip insertion to be adjusted according to the profile design.

This is useful when profiles have different groove positions, dimensions, stepped sections, or offset sections. Instead of manually setting each working position, the CNC system controls the required movements and positioning.

The machine provides:

Horizontal knurling tool adjustment from 10–220 mm

Vertical knurling tool adjustment from 0–230 mm

Thermal barrier strip adjustment from 0–65 mm

Positioning accuracy of ±0.05 mm

For non-standard profiles, the actual profile drawing should be checked before confirming the machine configuration.

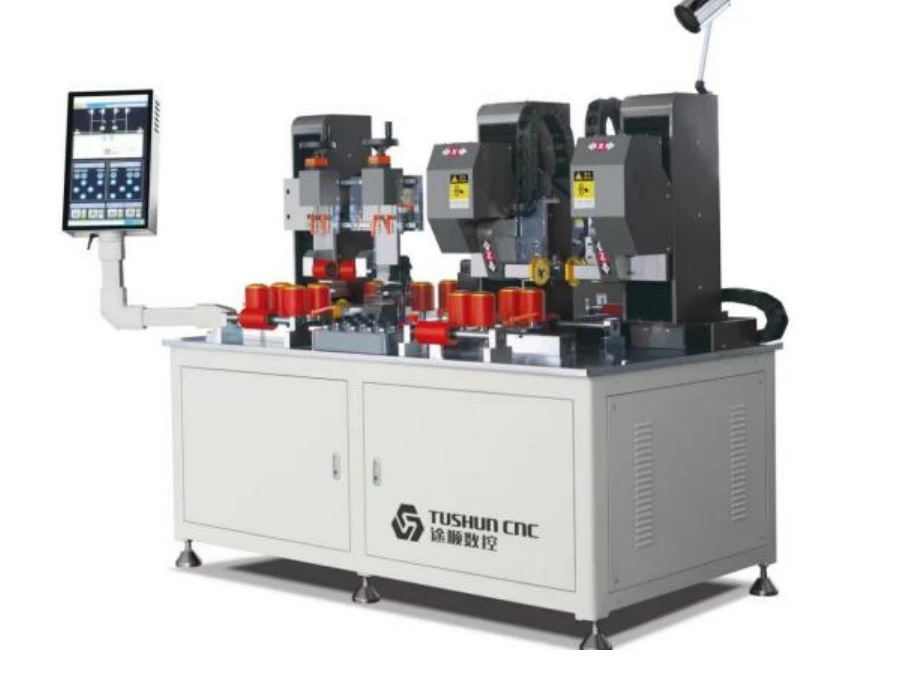

CNC Knurling and Strip Insertion Machine

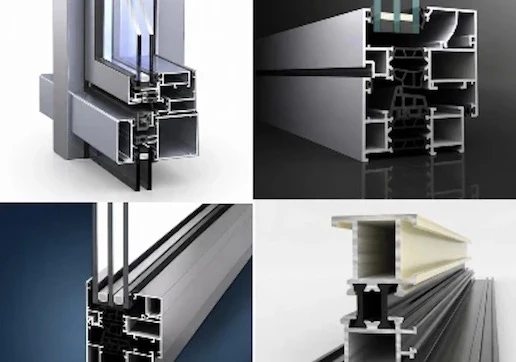

Finished Thermal Break Profile

How the Process Works

The machine completes two preparation operations before rolling crimping:

1. Profile Knurling

The aluminum profile groove is knurled to form mechanical teeth on the inner surface.

2. PA66 Strip Insertion

The polyamide thermal barrier strip is positioned and inserted into the prepared groove.

The assembled profile can then move to the rolling crimping process, where the aluminum profile is mechanically secured around the inserted strip.

Profile Knurling → Polyamide Strip Insertion → Rolling Crimping → Finished Thermal Break Profile

Profile Compatibility

The machine can be used for different thermal break aluminum profile designs, including:

Standard profiles

Stepped profiles

Offset profiles

Irregular profile sections

Custom thermal break profiles

Profile compatibility depends on the groove design, profile dimensions, strip size, and required working positions. For a new profile, MAKERL can review the profile drawing and recommend a suitable configuration.



What Is the Difference Between Knurling and Rolling Crimping?

These two operations have different purposes in thermal break profile assembly.

Knurling creates mechanical teeth inside the aluminum profile groove before the thermal barrier strip is inserted.

Rolling crimping takes place after strip insertion and deforms the aluminum profile around the strip to establish the required mechanical connection.

Knurling prepares the profile for engagement; rolling crimping completes the assembly.

Main Components

The machine uses servo-driven CNC positioning with Hiwin ball screws and linear guides for tool movement.

Schneider electrical components are used in the control system.

The focus is on controlling the position of the knurling and strip insertion tools accurately enough for repeatable profile preparation, rather than simply adding more mechanical functions to the machine.



Core Components

Servo motors drive the CNC positioning system. Taiwan Hiwin ball screws and square linear guides are used for tool movement, while Schneider components are used in the electrical control system.

These components are selected for the positioning and movement requirements of the knurling and strip insertion process.


Applications

The 12-axis CNC knurling and strip insertion machine is suitable for manufacturers producing thermal break aluminum profiles for:

Aluminum windows and doors

Curtain wall systems

Energy-efficient building projects

Custom thermal break profiles

High-volume profile production

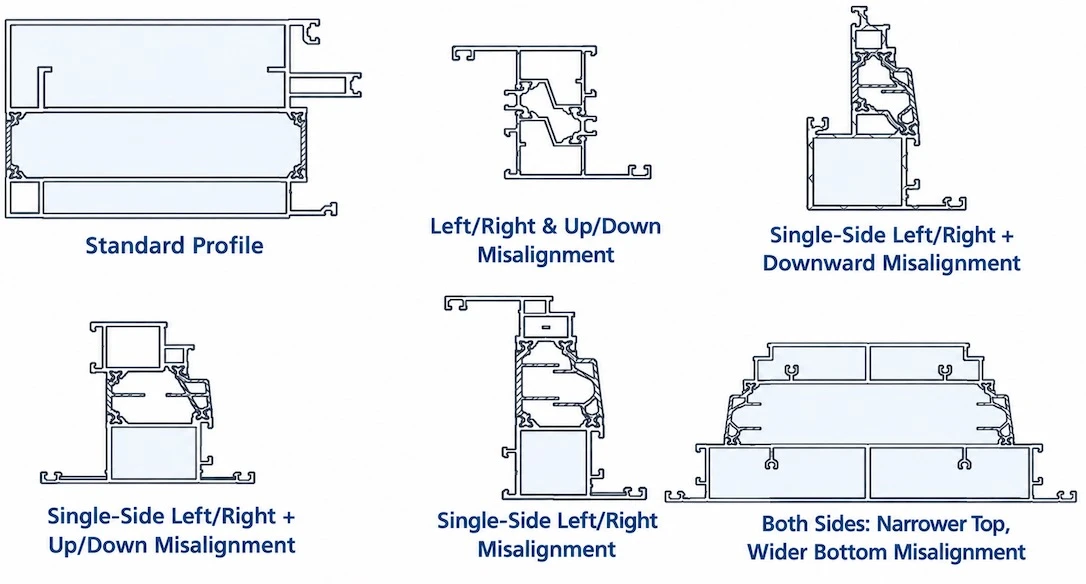

12-axis CNC knurling and strip insertion machine Applications

Technical Specifications

Parameter Specification
Model TKC-ZX-12CNC
Power Supply 380V / 50Hz
Total Power 9.0 kW
Horizontal Knurling Tool Adjustment Range 10–220 mm
Vertical Knurling Tool Adjustment Range 0–230 mm
Thermal Barrier Strip Adjustment Range 0–65 mm
Positioning Accuracy ±0.05 mm
External Air Pressure 0.6–0.8 MPa
Machine Weight Approx. 1,160 kg
Machine Dimensions 1800 × 1000 × 1650 mm (L × W × H)

Note:

Actual processing accuracy can vary depending on the profile dimensions, workpiece condition, and profile position in the working area.

Final specifications are subject to the technical agreement confirmed with the order.

FAQ

What information is needed to check whether my profile is suitable?

We normally check the profile drawing, groove dimensions, polyamide strip size, and required working positions before recommending the machine configuration.

What profile designs can the 12-axis machine process?

The machine can process standard, stepped, offset, irregular, and custom thermal break aluminum profiles, provided the profile dimensions and groove design are within the machine's working range.

How does 12-axis CNC control help with profile changeover?

The CNC system controls the working positions according to the selected profile configuration. This reduces the amount of manual positioning required when changing between different profile designs.

Why is knurling required before inserting the polyamide strip?

Knurling forms mechanical teeth inside the aluminum profile groove. These teeth help improve the mechanical engagement and friction between the aluminum profile and the PA66 polyamide thermal barrier strip.

What is the difference between knurling and rolling crimping?

Knurling prepares the aluminum profile groove before strip insertion. Rolling crimping is performed after insertion to secure the aluminum profile around the thermal barrier strip and complete the mechanical connection.

Can the machine be integrated into a complete thermal break assembly line?

Yes. The machine can be combined with rolling crimping equipment as part of a complete thermal break aluminum profile assembly line, covering knurling, strip insertion, and rolling crimping.



Have a profile that is difficult to process? Send us the profile drawing and strip dimensions. We can check the working range and recommend a suitable machine configuration.
