A thermal break profile knurling machine prepares aluminum profiles for the insertion of polyamide thermal barrier strips. It processes the inner grooves of the aluminum profile before strip insertion, creating a toothed or serrated surface for better mechanical engagement between the aluminum profile and the polyamide strip.
Knurling is an important step in the production of thermally broken aluminum profiles and is normally completed before strip insertion and rolling crimping.
What Is a Thermal Break Profile Knurling Machine?
A thermal break profile knurling machine is designed to process the grooves of aluminum profiles used for thermal break windows, doors and curtain wall systems.
During the process, knurling tools form small teeth or serrations on the inner groove surfaces of the aluminum profile. These processed surfaces help the polyamide strip engage with the aluminum profile during the following assembly process.
The machine can be configured according to the aluminum profile design, groove dimensions and production requirements.
Why Is Knurling Needed?
The polyamide thermal barrier strip must be securely connected to the aluminum profile after insertion.
If the groove surface is not properly prepared, the strip may not achieve the required mechanical engagement with the profile. Knurling creates a suitable toothed surface before the strip is inserted.
The basic process is:
Aluminum profile → Knurling → Polyamide strip insertion → Rolling and crimping
Knurling and strip insertion alone do not represent the complete assembly process. Rolling and crimping are then used to form the required final mechanical connection.
How Does the Knurling Process Work?
The aluminum profile is positioned and clamped before knurling. The knurling heads process the specified grooves according to preset parameters.

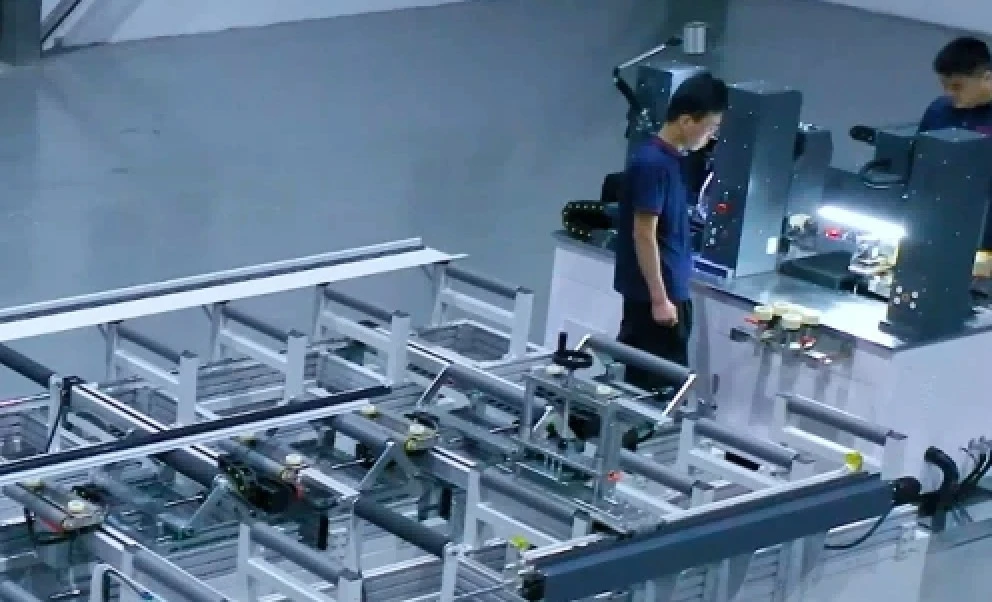

MAKERL's dual-station configuration can process the A-side upper and B-side lower grooves in sequence without manually turning the profile.
Key parameters include knurling depth, groove position, tool position, processing speed, and profile positioning.
Accurate knurling ensures proper alignment with the polyamide strip during insertion.
What Does a CNC Knurling Machine Control?
A CNC thermal break profile knurling machine uses programmed parameters to control the working position and processing conditions.
Depending on the machine configuration, CNC control can help manage:
Knurling depth
Working position
Feed movement
Left and right processing
Profile positioning
Different profile recipes
For manufacturers producing multiple aluminum profile designs, recipe storage and quick parameter adjustment can reduce setup time between different profiles.
Some MAKERL configurations also support QR code profile identification and automatic parameter selection.
Knurling Before Polyamide Strip Insertion
Knurling is performed before the polyamide strip is inserted into the aluminum profile. After insertion, the assembled profile moves to rolling and crimping.
The basic process is:
Profile feeding → Knurling → Strip insertion → Rolling and crimping → Inspection
This sequence prepares the aluminum profile for the required thermal break assembly.
What Aluminum Profiles Can Be Processed?
The suitable machine configuration depends on the profile design.
Before selecting a thermal break profile knurling machine, manufacturers should check:
Profile width and height
Groove dimensions
Groove position
Profile shape
Polyamide strip specification
Profile length
Required production capacity
Profiles with different cross-sections may require different clamping, positioning and knurling configurations.
For irregular, stepped or offset aluminum profiles, the machine should also be able to position the profile and knurling heads according to the actual profile geometry.
How to Choose a Thermal Break Profile Knurling Machine?
The main factors to consider include:
1. Profile compatibility
Make sure the machine can accommodate the size, shape and groove design of your aluminum profiles.
2. Knurling accuracy
Check the available depth adjustment, positioning accuracy and control method.
3. Production requirements
Choose the machine configuration according to your required output and number of profile types.
4. Changeover
If your factory produces multiple profiles, quick parameter adjustment and recipe management can reduce setup time.
5. Integration
For higher-volume production, a knurling and strip insertion machine or complete thermal break assembly line can connect the knurling, strip insertion, conveying and rolling processes.
MAKERL Thermal Break Profile Knurling Machines

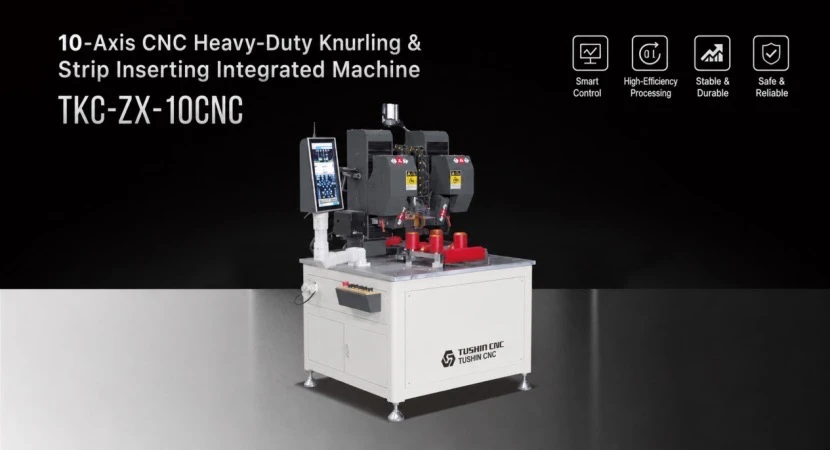

MAKERL manufactures CNC thermal break profile knurling machines for aluminum profile processing and thermal break assembly.
The equipment can be configured for different profile designs and production requirements. Available functions may include CNC knurling, profile positioning, polyamide strip insertion and automatic process control.
For complete production lines, MAKERL integrates CNC knurling and strip insertion with automatic conveying and CNC rolling crimping.
If you are selecting a thermal break profile knurling machine, provide your aluminum profile drawings, groove dimensions, polyamide strip specifications and production requirements. These details can be used to determine the suitable machine configuration.
